Concept Case Clamps

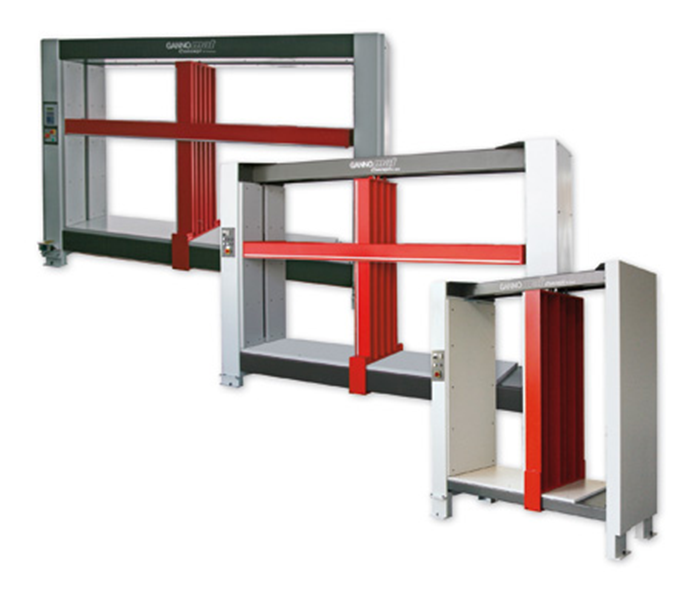

Gannomat offers three models of case clamp to fit your company's production. The Gannomat Concept line of case clamps provide reinforced steel beams, adjustable pressing force from 300kg – 2200kg (3500kg for Primus), and an extensive options package to fit your companies assembly area.

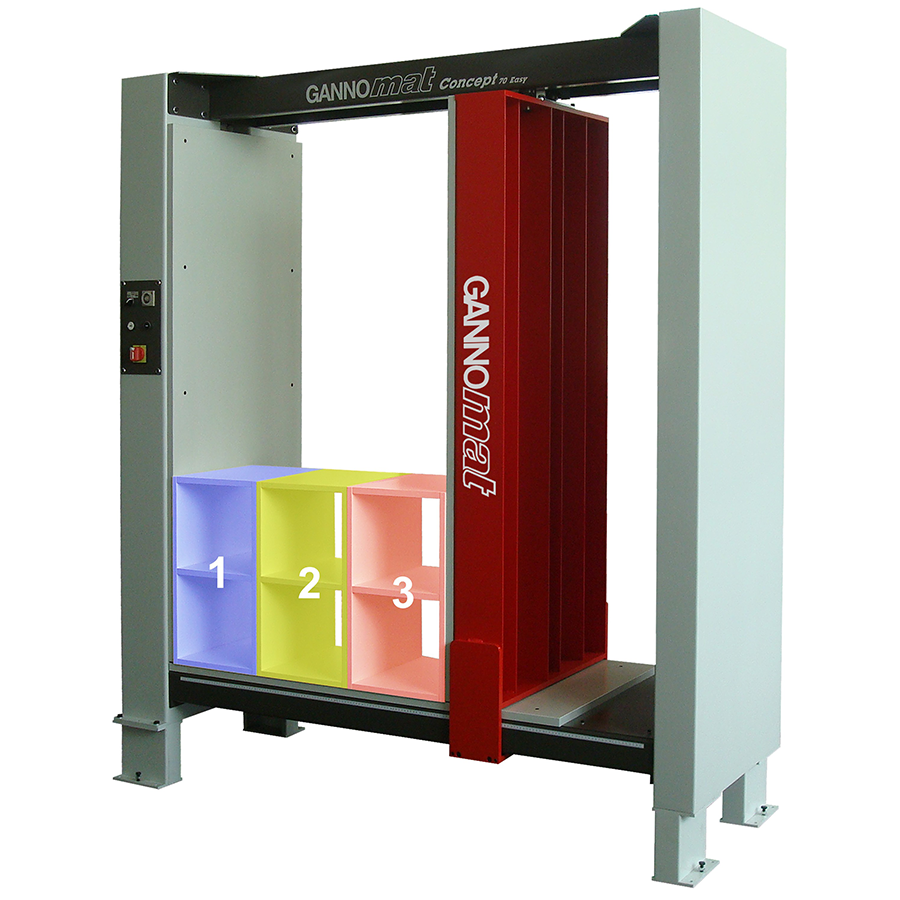

Concept 70 Easy
The Concept Easy is the ideal assembly support for dowel construction for case goods production as well as drawer production.
- Small footprint requirement, less than 20 square feet
- Potentiometer for stepless adjustable pressing force
- Pressing force min. 300 daN (kg)
- Pressing force max. 2200 daN (kg)
- 3 Pressing velocities and adjustment rates, 5 /10 / 25 mm/sec. (with fine positioning / creep feed)
- Adjustable clamping cycle time with automatic opening
- Clamp dimensions: - 79" L x 32" D
- Minimum clamping width: 6"
- Maximum clamping width: 51-3/16"
- Two models: 70/170 - 82-5/8" H with 67" Working Height and the 70/250 - 114" H with 98-1/2" Working Height
Concept 70 ECO Plus
The Concept Eco, our most popular model, provides flexible support in the assembly of dowel construction case goods as well as drawer assembly production.
- With workpiece tolerance compensation (System Ganner)
- 2 Potentiometer for stepless adjustable pressing force
- Pressing force min. 300/500 kg
- Pressing force max. 2200 kg
- 4 Pressing velocities and adjustment rates, 5 /10 / 25 / 50 mm/sec. (with fine positioning / creep feed)
- Adjustable clamping cycle time with automatic opening
- Simple operation by 6 individual push buttons for 8 motion sequences
- Standard Length (X): 150 - 2500 mm, Height (Z): 150 - 1300 mm, Depth (Y): 150 - 700 mm. Can also be provided in longer X-axis length as an option.
Concept Primus 70/90
The Concept Primus provides some of the highest pressing force on the market at 3500kg max. This model can also come in a 700mm or 900mm depth to fit your company's assembly production needs.
- With workpiece tolerance compensation (System Ganner)
- 2 Potentiometer for stepless adjustable pressing force
- Pressing force min. 600/800 kg
- Pressing force max. 3500 kg
- 4 Pressing velocities and adjustment rates 5 /10 / 25 / 50 mm/sec. (with fine positioning / creep feed)
- Adjustable clamping cycle time with automatic opening
- Simple operation by 6 individual push buttons for 8 motion sequences
- Width (X): 150 - 2500 mm, Height (Z): 150 - 1300 mm, Depth (Y): 150 - 700 mm = Concept Primus 70, Depth (Y): 150 - 900 mm = Concept Primus 90. Can also be provided in longer X-axis length as an option.
